Product Overview – Brass Elbows
Brass Elbows are angle pipe fittings used to change the direction of flow in piping systems, commonly at 90° and 45° angles. Manufactured from high-quality Brass, Red Brass, and Gunmetal alloys, these fittings deliver excellent resistance to corrosion, pressure, temperature variation, and mechanical stress.
Our brass elbows are manufactured by forging or casting followed by precision CNC machining and threading, ensuring dimensional accuracy, consistent thread quality, and long service life. They are suitable for water, air, gas, fuel, oil, and industrial fluids across residential, commercial, and heavy-duty industrial applications.
Product Variants

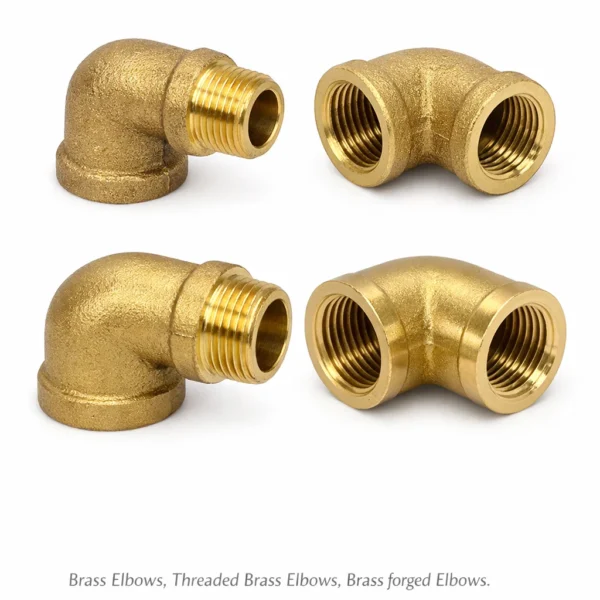

Brass Elbows
Standard brass elbows for general plumbing and industrial use. These fittings provide reliable performance in medium-pressure systems and are widely used due to their excellent machinability and corrosion resistance.
Common configurations:
90° Brass Elbow
45° Brass Elbow
Brass Threaded Elbows
Brass Threaded Elbows are designed with precision internal or external threads for leak-proof connections. These are ideal for systems requiring easy installation, maintenance, or replacement.
Thread combinations available:
Female × Female
Male × Female
Male × Male
Brass Forged Elbows
Brass Forged Elbows are produced through hot forging, resulting in a compact grain structure and superior mechanical strength compared to cast fittings. These are preferred for high-pressure, vibration-prone, and safety-critical applications.
Advantages of forged elbows:
Higher pressure rating
Improved fatigue life
Uniform metallurgical structure
Brass NPT Elbows
Brass NPT Elbows are manufactured as per ANSI / ASME B1.20.1 standards and are primarily used in the USA, Canada, and North America. The tapered NPT thread provides self-sealing performance under pressure.
Brass BSP Elbows
Brass BSP Elbows conform to BS 21 / ISO 228 / ISO 7-1 standards and are commonly supplied to Europe, UK, Middle East, Africa, and Asia.
Thread options:
BSPP (Parallel)
BSPT (Tapered)
Red Brass / Gunmetal Elbows
Red Brass (Gunmetal) Elbows are copper-rich alloys containing tin and zinc, offering superior resistance to dezincification, seawater corrosion, steam, and high temperatures.
These elbows are widely used in marine, valves, pumps, firefighting, and heavy industrial systems.
Manufacturing Process
Forging / Casting
Depending on application and alloy, elbows are produced using:
Hot Forging – for brass elbows requiring higher pressure capability
Sand Casting / Shell Molding – for red brass and gunmetal elbows with complex geometries
Machining & Threading
Post-forming operations include:
CNC turning and facing
Precision thread cutting (NPT / BSP / SAE / Metric)
Deburring, cleaning, and surface finishing
In-process and final inspection
This ensures consistent thread fitment and interchangeability.
Material Grades & Standards
Brass Grades (Yellow Brass)
ASTM / USA
C36000 (Free Cutting Brass)
C37700 (Forging Brass)
EN / Europe
CW614N (CZ121)
CW617N
IS / India
IS 319 Gr 1 / Gr 2
Red Brass & Gunmetal Grades
ASTM / USA
C83600 (85-5-5-5 Red Brass)
C84400
EN 1982 / Europe
CC491K (LG2 Gunmetal)
IS Standards
IS 318 Gunmetal alloys
Custom alloy compositions available as per drawing or specification.
Thread & Size Range Chart (Reference)
Nominal Size Range
1/8″ to 4″ (standard production)
Larger sizes available on request
BSP Thread Reference (ISO 228 / ISO 7-1)
| BSP Size | Major Ø (mm) | Threads / Inch |
|---|---|---|
| 1/8″ | ~9.7 | 28 TPI |
| 1/4″ | ~13.1 | 19 TPI |
| 3/8″ | ~16.7 | 19 TPI |
| 1/2″ | ~20.9 | 14 TPI |
| 3/4″ | ~26.4 | 14 TPI |
| 1″ | ~33.2 | 11 TPI |
| 1-1/4″ | ~41.9 | 11 TPI |
| 1-1/2″ | ~47.8 | 11 TPI |
| 2″ | ~59.6 | 11 TPI |
NPT Thread Reference (ANSI / ASME B1.20.1)
| NPT Size | Major Ø (mm) | Threads / Inch |
|---|---|---|
| 1/8″ | ~10.3 | 27 TPI |
| 1/4″ | ~13.7 | 18 TPI |
| 3/8″ | ~17.1 | 18 TPI |
| 1/2″ | ~21.3 | 14 TPI |
| 3/4″ | ~26.7 | 14 TPI |
| 1″ | ~33.4 | 11.5 TPI |
| 1-1/4″ | ~42.2 | 11.5 TPI |
| 1-1/2″ | ~48.3 | 11.5 TPI |
| 2″ | ~60.3 | 11.5 TPI |
SAE / UNEF Thread (On Request)
| SAE Size | Threads / Inch | Typical Use |
|---|---|---|
| 7/16-20 | 20 TPI | Hydraulic & instrumentation |
| 1/2-20 | 20 TPI | High-pressure fittings |
| 9/16-18 | 18 TPI | Fluid connectors |
| 3/4-16 | 16 TPI | Industrial couplings |
Surface Finish Options
Natural Brass
Polished Brass
Nickel Plated
Chrome Plated
Tin Plated (for electrical & corrosion-sensitive use)
Typical Applications
Plumbing & sanitary installations
HVAC & refrigeration
Gas distribution systems
Electrical & earthing hardware
Marine, shipbuilding & offshore
Pumps, valves & industrial machinery
Quality Control & Testing
Dimensional & visual inspection
Thread gauging (Go / No-Go gauges)
Material composition verification
Pressure / leak testing (if required)
Why Choose Our Brass Elbows?
Complete range: Brass Elbows, Red Brass Elbows & Gunmetal elbows
Forged and cast manufacturing capability
Accurate BSP, NPT & special threads
International material standards compliance
OEM & export-ready packaging
Custom drawings, sizes, and finishes supported
