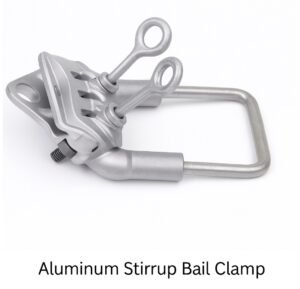

Aluminum Stirrup Clamps with Bronze Bail
Overview
Our Aluminum Stirrup Clamps with Bronze Bail are precision-engineered mechanical connectors used in pole line hardware systems. Designed to combine the high strength of aluminum with the superior conductivity and corrosion resistance of bronze, these clamps ensure long-term performance in overhead power distribution applications. We are a leading manufacturer of Aluminum Overhead line clamps Aluminium Hotline clamps, Bronze Hotline clamps, Bronze Transformer spades etc. from our casting foundry in India. Our Aluminium Stirrup Bail Clamps are widely exported to USA and Latin America.
Key Features
Bimetallic Design: Aluminum body with high-conductivity bronze bail.
Corrosion Resistant: Suitable for coastal and humid environments.
Tool-Friendly: Easy installation with minimal torque requirement.
High Mechanical Strength: Suitable for high-tension conductor support.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material – Clamp Body | High-strength Aluminum Alloy (6061/LM6) |
| Material – Bail (Stirrup) | Forged or drawn Tin-Plated Bronze (C52100/C63000) |
| Surface Finish | Shot Blasted or Natural Aluminum |
| Application | Overhead Line Fittings, Distribution Poles |
| Torque Requirement | 20–25 Nm |
| Conductor Compatibility | ACSR / AAAC / Copper Conductors |
| Temperature Range | -40°C to +120°C |
| Corrosion Resistance | High (IEC 60068-2 salt spray tested) |
Applicable Standards
ASTM B117 (Salt Spray)
ANSI C119.4
IEC 61284
Applications
Utility pole fittings
Substation connectors
Grounding systems
Smart grid and renewable energy installations
Manufacturing & QA
Manufactured using gravity die casting or forging
CNC-machined for dimensional accuracy
100% visual inspection & torque testing before dispatch
Packaging
Individually packed in poly bags
Bulk export cartons or custom packaging on request
Lead Time
Standard delivery: 4–6 weeks
Expedited orders available upon request
Common Questions (FAQ)
Q1. What size conductors does this clamp support?
A1. Suitable for a wide range of conductors, including ACSR 6 AWG to 4/0 AWG.
Q2. Can the bronze bail be tinned?
A2. Yes, tin-plating is standard to enhance corrosion resistance and conductivity.
Q3. Are custom bails available?
A3. Yes, we can supply round, flat, or shaped bails to customer specifications.
Q4. Is this clamp approved for tropical regions?
A4. Absolutely. It is designed for high humidity and salt-laden environments.
Q5. Can it be reused after disassembly?
A5. Yes, if not over-torqued or physically deformed.
Q6. What is the typical mechanical strength?
A6. Designed to handle over 5 kN tensile force safely.
Q7. Is it RoHS compliant?
A7. Yes, all materials comply with RoHS 3 (EU 2015/863).
Q8. Is there a torque limiter screw option?
A8. Available upon request.
Q9. Can this product be laser engraved with part number or logo?
A9. Yes, laser marking is available.
Q10. Is the bail removable or fixed?
A10. The bail is inserted during assembly but can be disassembled if needed.
