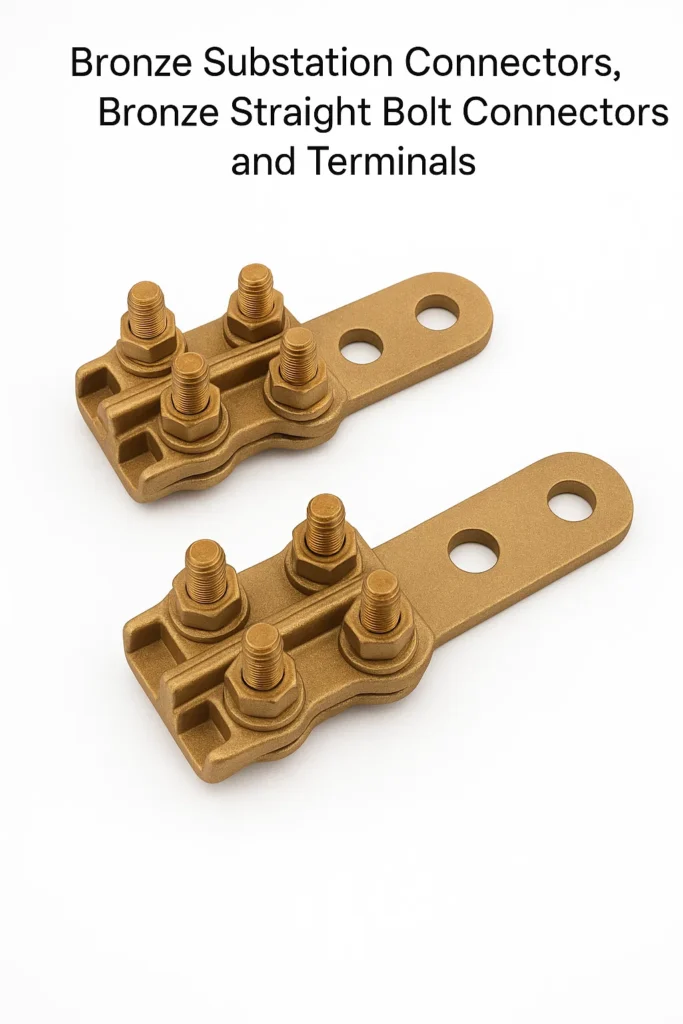

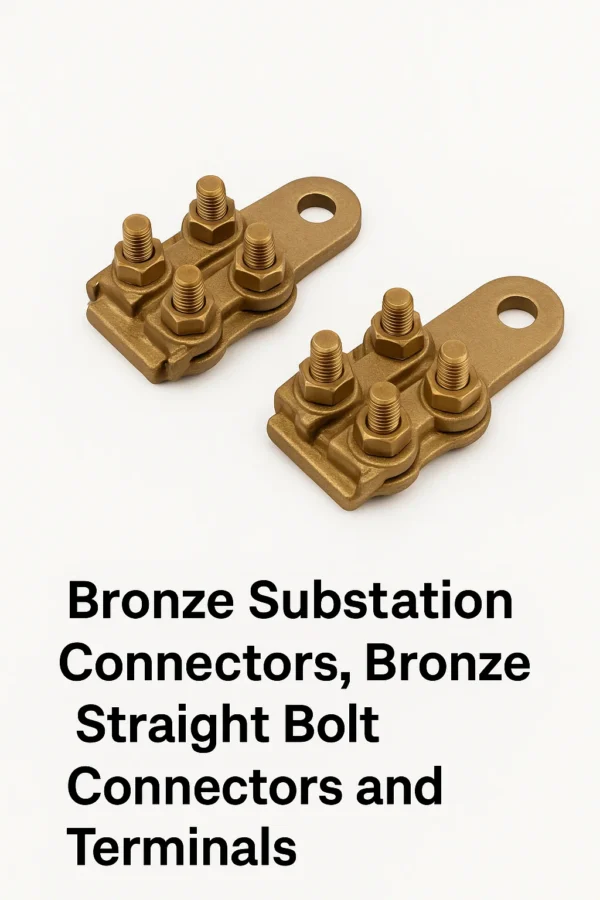

Bronze Substation Connectors – Bronze Straight Bolt Terminal (Cable-To-Flat)

Bronze Substation Connectors – Bronze Straight Bolt Terminal (Cable-to-Flat)

We are one of the leading manufacturers and exporters of Bronze Substation Connectors, Bronze Bolted Stud Connector, and Bronze Straight Bolt Terminals from India. We have been supplying high-performance power-utility connectors to the world market for many decades. Our expertise spans Bronze alloy casting, precision machining, NEMA-spaced flat terminals, substation grounding connectors, and heavy-duty clamping hardware used in high-voltage transmission and distribution networks. These Bronze Straight Bolt Terminals are engineered for secure connection of stranded Copper conductors to Copper flats, busbars, transformer pads, and earthing networks where long-term electrical integrity, corrosion resistance, and mechanical strength are critical. Designed for ease of installation, these terminals provide stable conductor pressure, low electrical resistance, and long service life across demanding outdoor and substation environments. With global exposure, superior engineering communication, flexible production schedules, and consistent material traceability, we remain one of the most trusted Indian suppliers for global OEMs, utilities, EPC contractors, and electrical distributors.

Overview (Long & Keyword-Rich)

Our Bronze Straight Bolt Terminal Cable-to-Flat Connectors are designed for substation applications where high electrical conductivity, thermal stability, and corrosion resistance must be guaranteed under continuous current loads. These connectors feature precision-machined clamping pads, reversible grooves for different conductor sizes, NEMA hole spacing, 45° or 90° installation angles, and hex-headed Bronze or Stainless Steel bolts for one-wrench installation. The connector body is produced from high-strength Bronze casting alloys, ensuring dimensional stability, vibration resistance, and extended outdoor performance even in polluted, coastal, or industrial atmospheres.

These Bronze Substation Connectors are widely used for transformer cable terminations, switchgear, busbar systems, grounding networks, and utility pole applications, ensuring optimal current flow while preventing hot-spots. Our processes are aligned with ASTM, IS, BS, DIN, JIS norms and we provide full customization of conductor grooves, bolt materials, NEMA hole patterns, and plating finishes.

Material Grades (International Equivalents)

All connector bodies are produced from high-integrity Bronze alloys with high Copper content for conductive and mechanical performance.

Bolt / Hardware Options:
– Silicon Bronze (C65100)
– Stainless Steel 304 / 316
– Hot-dip Galvanized Steel (optional)

Manufacturing Processes

Our Bronze Substation Connectors are manufactured through a combination of precision sand casting, shell moulding, gravity die casting, and CNC machining to achieve consistent tolerances and a smooth conductor-contact surface. After casting, every piece undergoes heat treatment, shot blasting, CNC milling, tapping, and groove machining to ensure uniformity. Contact surfaces are lapped to maintain stable electrical resistance. Threads are verified using calibrated gauges and each component undergoes torque-testing to validate performance under field conditions.

Machinery Used in Production

Our facility in India employs a comprehensive range of modern machinery:

• CNC Turning Centers (Fanuc / Siemens)

• VMC Milling Centers for slotting, surfacing and hole-spacing

• Roll threading machines for bolt manufacturing

• Climatic inspection chambers for corrosion validation

• 3-Tank Ultrasonic Cleaning Lines for surface cleaning

• Spectro-analysis equipment for material certification

• Coordinate Measuring Machines (CMM) for accuracy checks

Typical Parts Produced in This Series

Bronze Straight Bolt Terminals
Bronze Cable-to-Flat Connectors
Copper Conductor Termination Lugs
NEMA-Spaced Transformer Terminals
Substation Ground Connectors
Bronze Mechanical Lugs
Bolt-Type Busbar Connectors

Size & Dimensional Chart (Example Table)

Plating / Surface Finish Options

Depending on the environment & customer needs:

• Natural Bronze (Shot-blasted)

• Tin-Plated Bronze (ASTM B545)

• Nickel-Plated Bronze

• Anti-oxidation Coat / Benzotriazole (BTA) Treatment

• Passivated Stainless Hardware

Industries Using These Connectors

Power transmission utilities
Substation EPC contractors
Renewable energy installations
Transformer manufacturers
Switchgear OEMs
Railway electrification projects
Oil & Gas electrical systems
Industrial grounding networks

Tolerances & Performance Metrics

Dimensional tolerances: ±0.10 mm (machined surfaces)
Casting tolerance: ±0.30 mm
Thread tolerance: Class 2B (UNC/UNF)
Torque endurance: tested up to 180% of recommended installation load
Electrical resistance: below 30 micro-ohms at rated current
Temperature rise: < 30°C over ambient under continuous load

Turnaround Time

Standard production 4–6 weeks, with expedited manufacturing available for approved drawings.

Why Choose Us Over Others

Customers around the world prefer our Bronze Substation Connectors because of:
– Over three decades of global engineering and export experience
– Ability to modify designs, angles (45°, 90°), groove configurations, and hole spacing
– Faster communication and real-time engineering feedback
– Quick tooling development for custom terminals
– Full traceability, PPAP support, and international packing standards
– Ability to brand packaging with customer labels, carton printing, barcodes, and logos
– Flexible MOQs and export-grade packing with fumigation-free pallets

Customer Testimonials

Michael R., USA:
“The Bronze Straight Bolt Terminals supplied by your team exceeded our expectations. Excellent machining, accurate NEMA spacing, and flawless communication throughout the project. Truly reliable supplier.”

Daniela S., UK:
“We shifted our substation connector sourcing to your company last year. The consistency of material quality and your ability to support drawing changes makes you our preferred global partner.”

Typical Q & A

1. What is a Bronze Straight Bolt Terminal and Bronze Bolted Stud Connector used for in substations?
It is used for connecting stranded Copper conductors to flat pads, busbars, and transformer terminals in high-voltage networks where conductivity and mechanical strength are critical.

2. Are your Bronze Substation Connectors compliant with ASTM and IS standards?
Yes, we manufacture using ASTM B584, B150, IS 318, and other global material standards with full certification and heat number traceability.

3. Can these connectors handle high current loads continuously?
The Bronze alloy and wide contact surface ensure low resistance and stable temperature rise under continuous electrical load.

4. Do you offer custom NEMA hole spacing for transformer lugs?
Yes, NEMA spacing can be customized based on customer drawings or OEM requirements.

5. Can I request Tin-Plated Bronze terminals for corrosion-prone areas?
Yes, Tin plating is available for coastal, marine, and industrial atmospheres.

6. Do you manufacture the bolts as well?
We offer Silicon Bronze, Stainless Steel, or Galvanized Steel bolts, produced in-house or sourced from certified partners.

7. What conductor sizes are supported?
We offer grooves for #6 AWG to 500 MCM, and custom configurations can also be manufactured.

8. Are reversible cable caps available?
Yes, caps are supplied as per customer requirement for small and large groove combinations.

9. Can you supply connectors with a 45° or 90° mounting angle?
Yes, angled versions are available for limited-space installations.

10. What is the typical lifespan of these connectors?
When installed correctly, service life often exceeds 25–30 years under outdoor substation conditions.

11. Do you offer PPAP or First Article Inspection documentation?
Yes, PPAP Level 3 documentation can be provided on request for OEM projects.

12. What machining tolerances do you maintain?
Critical machined features are maintained within ±0.10 mm to ensure stable conductor clamping.

13. How do you ensure low electrical resistance?
By using high-conductivity Bronze alloys and precision-machined contact surfaces that ensure optimum pressure.

14. Are these suitable for renewable energy plants?
Yes, they are widely used in solar, wind, and hybrid renewable installations for grounding and interconnections.

15. How are the connectors packed for export?
Export-grade cartons, bubble-wrap, labels, barcodes, and palletization are done as per customer specification.

Glossary of Terms

NEMA Spacing: Standardized hole spacing for transformer and switchgear connectors.
MCM/kcmil: Thousand circular mil – unit for conductor cross-section area.
Bronze Alloy: Copper-based alloy used for electrical connectors, offering corrosion resistance and strength.
Tin Plating: Protective metallic layer improving corrosion resistance and solderability.
Torque Rating: The recommended tightening force for clamp bolts ensuring optimum pressure.
Substation Connector: Mechanical device used to join conductors in high-voltage systems.
