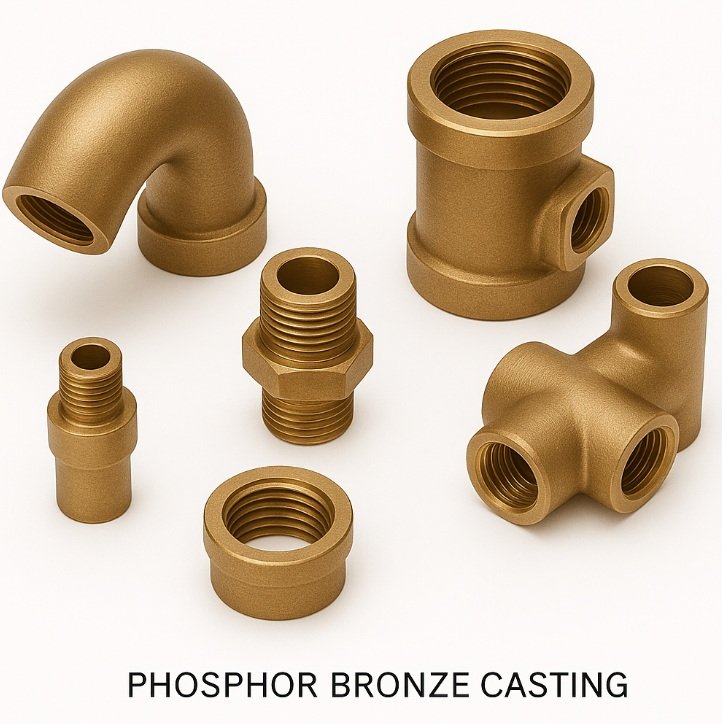

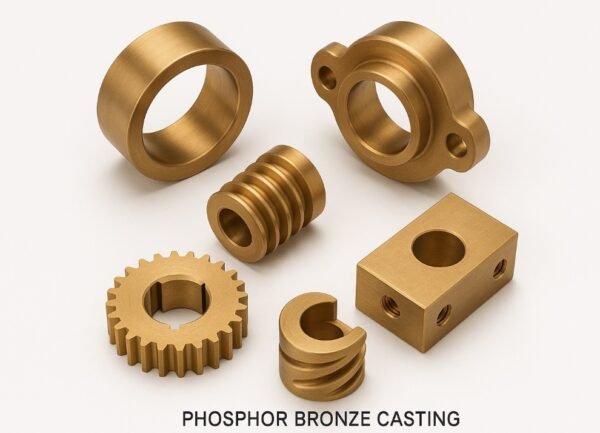

Phosphor Bronze Casting: premium Bronze castings from India

Phosphor bronze stands as one of the most versatile and reliable copper-based alloys in modern manufacturing. With its exceptional combination of strength, corrosion resistance, and machinability, phosphor bronze has become the material of choice for applications ranging from precision bearings to marine hardware. At our foundry, we specialize in multiple casting methods to meet diverse client needs, ensuring optimal results for every project.

Understanding Phosphor Bronze

Phosphor bronze is a copper-tin alloy enhanced with phosphorus, typically containing 0.5% to 11% tin and 0.01% to 0.35% phosphorus. The phosphorus serves as a deoxidizer during casting and improves the alloy’s strength and wear resistance. This combination creates a material with superior spring properties, excellent fatigue resistance, and outstanding corrosion resistance, particularly in marine environments.

Shell Molding for Phosphor Bronze

Shell molding represents one of our most precise casting methods for phosphor bronze components. This process involves creating thin-walled molds using sand mixed with thermosetting resin, heated around metal patterns to form hardened shells.

For phosphor bronze casting, shell molding offers exceptional dimensional accuracy and superior surface finish, making it ideal for intricate components like bushings, valve seats, and precision mechanical parts. The process excels with phosphor bronze due to the alloy’s excellent fluidity and the shell’s ability to capture fine details. The smooth mold surface reduces the need for extensive machining, while the permeable shell walls allow for proper gas venting during the casting process.

Our shell molding process typically achieves tolerances of ±0.005″ to ±0.015″ for phosphor bronze castings, with surface finishes ranging from 125 to 250 microinches. This method is particularly effective for medium to high-volume production runs where consistency and quality are paramount.

Investment Casting Excellence

Investment casting, also known as lost-wax casting, provides unmatched precision for complex phosphor bronze components. This ancient technique, refined with modern technology, creates highly detailed parts with minimal draft angles and exceptional surface quality.

The investment casting process begins with creating wax patterns that are assembled into clusters and coated with multiple layers of ceramic slurry. Once the ceramic shell hardens, the wax is melted out, leaving a precise cavity for phosphor bronze casting. This method is particularly valuable for producing components with internal passages, undercuts, or complex geometries that would be impossible or expensive to machine.

Phosphor bronze’s casting characteristics make it well-suited for investment casting, as the alloy fills thin sections effectively while maintaining structural integrity. We regularly produce investment cast phosphor bronze parts for aerospace applications, medical devices, and high-performance automotive components, achieving tolerances as tight as ±0.003″ in critical dimensions.

Green Sand Casting Versatility

Green sand casting remains the most widely used foundry process, offering excellent flexibility for phosphor bronze casting across a broad range of part sizes and production volumes. The term “green” refers to the moisture content in the sand, not the color, as the molding sand contains clay and water that provide binding properties.

This traditional method excels for larger phosphor bronze castings where dimensional tolerances can be more relaxed. The process accommodates rapid design changes and prototype development, making it ideal for custom applications and shorter production runs. Green sand’s natural porosity allows gases to escape during casting, reducing the risk of defects in phosphor bronze pours.

Our green sand operation handles phosphor bronze castings from a few ounces to several hundred pounds, with typical tolerances ranging from ±1/32″ to ±1/8″ depending on casting size. The process is particularly cost-effective for brackets, flanges, and structural components where the inherent strength of phosphor bronze is more important than extremely tight tolerances.

Black Sand Casting Precision

Black sand casting, utilizing chromite or other specialty sands, provides enhanced properties for demanding phosphor bronze applications. The darker sand composition offers superior thermal conductivity and refractoriness compared to silica-based green sand, resulting in improved casting quality and reduced thermal stress.

This method is particularly beneficial for phosphor bronze alloys with higher tin content, which require more controlled cooling rates to prevent segregation and achieve optimal mechanical properties. The improved thermal characteristics of black sand help minimize hot tears and other thermal-related defects that can occur with phosphor bronze’s solidification characteristics.

Black sand casting produces phosphor bronze components with finer grain structure and improved mechanical properties, making it our preferred choice for high-stress applications such as pump impellers, propeller hubs, and heavy-duty bearing components.

Centrifugal Casting Innovation

Centrifugal casting harnesses rotational forces to produce dense, defect-free phosphor bronze castings, particularly excelling in cylindrical components like bushings, sleeves, and pipes. The process involves pouring molten phosphor bronze into a rotating mold, where centrifugal force distributes the metal evenly while forcing impurities toward the inner surface.

This method is exceptionally well-suited for phosphor bronze due to the alloy’s density and fluidity characteristics. The centrifugal force eliminates porosity and ensures uniform wall thickness, while the directional solidification from outside to inside creates superior mechanical properties throughout the casting.

Our centrifugal casting operation produces phosphor bronze components with exceptional roundness and concentricity, often eliminating the need for internal machining. This process is particularly valuable for marine propulsion components, where the combination of phosphor bronze’s corrosion resistance and centrifugal casting’s structural integrity provides optimal performance.

Comprehensive Phosphor Bronze Alloy Specifications

Understanding the complete range of phosphor bronze alloys enables optimal material selection for specific applications. Each alloy offers unique characteristics suited to different casting methods and end uses.

Standard Phosphor Bronze Grades

CDA 510 (Phosphor Bronze A, SAE 64, ASTM B103-A) contains 4.0-6.0% tin and 0.03-0.35% phosphorus. This represents the most common phosphor bronze alloy, providing excellent spring properties, good corrosion resistance, and superior machinability. Tensile strength ranges from 50,000-75,000 PSI with excellent electrical conductivity. Ideal for electrical contacts, springs, bearing applications, and switch components where moderate strength and conductivity are required.

CDA 511 (Phosphor Bronze B, SAE 65) features 7.0-9.0% tin and 0.03-0.35% phosphorus, offering increased strength and hardness compared to Grade A. Tensile strength typically reaches 60,000-85,000 PSI with enhanced wear resistance. This alloy excels in heavy-duty bearing applications, wear plates, and structural components requiring higher load-bearing capacity while maintaining good corrosion resistance.

CDA 521 (Phosphor Bronze C, SAE 66) contains 9.0-11.0% tin and 0.03-0.35% phosphorus, providing the highest strength and hardness in the standard phosphor bronze series. Tensile strength can exceed 90,000 PSI with superior fatigue resistance. This premium alloy is specified for the most demanding applications, including aerospace components, high-performance bearings, and marine hardware subjected to extreme conditions.

Specialized Marine and Naval Grades

CDA 524 (Naval Bronze, G-Bronze) incorporates 9.0-11.0% tin with 0.03-0.35% phosphorus, specifically formulated for marine applications. This alloy offers exceptional resistance to saltwater corrosion, cavitation erosion, and biofouling while maintaining the strength characteristics needed for propellers, rudders, shafting, and other naval components. The composition is optimized for casting complex marine hardware with excellent foundry characteristics.

CDA 923 (Leaded Naval Bronze) adds 0.8-2.0% lead to the naval bronze composition for enhanced machinability while retaining marine-grade corrosion resistance. This alloy is particularly valuable for machined marine components requiring precise tolerances and superior surface finish.

Enhanced Machinability Grades

CDA 532 (Leaded Phosphor Bronze) adds 2.5-4.0% lead to improve machinability while maintaining beneficial phosphor bronze properties. The lead content creates free-machining characteristics ideal for high-volume production of precision components. Typical composition includes 9.0-11.0% tin, 0.03-0.35% phosphorus, and controlled lead content for optimal chip formation and surface finish.

CDA 534 (Extra High Leaded Phosphor Bronze) contains higher lead content (3.5-4.5%) for maximum machinability in applications requiring extensive secondary operations. This grade maintains good strength while providing exceptional machining characteristics for complex geometries and tight tolerances.

High-Performance Specialty Grades

CDA 544 (Free-Cutting Phosphor Bronze) combines optimized tin content (9.5-10.5%) with controlled sulfur additions for superior machinability. This specialty grade provides excellent mechanical properties while enabling high-speed machining operations with superior surface finishes.

CDA 510M (Modified Phosphor Bronze A) features enhanced phosphorus content (0.15-0.50%) for improved deoxidation and casting characteristics. This modified grade offers superior foundry properties while maintaining the beneficial characteristics of standard Grade A phosphor bronze.

CDA 511M (Modified Phosphor Bronze B) incorporates elevated phosphorus levels with standard Grade B tin content for enhanced casting fluidity and reduced porosity. Particularly beneficial for complex castings requiring superior soundness and mechanical properties.

Continuous Cast Grades

CDA 510CC (Continuous Cast Phosphor Bronze A) is specifically formulated for continuous casting processes, featuring controlled chemistry and enhanced cleanliness levels. This grade provides consistent mechanical properties and superior surface quality for applications requiring uniform material characteristics.

CDA 521CC (Continuous Cast Phosphor Bronze C) offers the highest strength phosphor bronze composition optimized for continuous casting. Enhanced quality control ensures minimal segregation and superior mechanical properties throughout the cast section.

International Equivalent Grades

BS 1400 PB1 (British Standard) corresponds closely to CDA 510 with 4.0-6.0% tin and controlled phosphorus content. Widely specified in European applications requiring proven phosphor bronze performance.

BS 1400 PB2 matches CDA 521 characteristics with 9.0-11.0% tin content, providing high-strength phosphor bronze for demanding British and European applications.

JIS H 5111 Class 1 (Japanese Industrial Standard) aligns with phosphor bronze requirements for Asian markets, featuring controlled tin and phosphorus content optimized for local manufacturing practices.

DIN 17662 CuSn8P (German Standard) specifies 8% tin phosphor bronze composition widely used in European precision manufacturing applications.

Custom Alloy Development

Beyond standard grades, our foundry develops custom phosphor bronze compositions for specialized applications. These may include modified tin content for specific strength requirements, controlled lead additions for enhanced machinability, or specialized element additions for unique performance characteristics.

High-Tin Custom Grades can incorporate tin content up to 15% for maximum strength and wear resistance in extreme service conditions. These specialty compositions require careful melting and casting practices to ensure proper solidification and mechanical properties.

Low-Tin Variants with 2-4% tin content provide enhanced conductivity while maintaining corrosion resistance for specialized electrical applications requiring optimized electrical properties.

Nickel-Enhanced Grades incorporate small nickel additions (0.5-2.0%) to improve strength and toughness for applications subjected to shock loading or extreme temperature variations.

Casting Method Selection Guide

Choosing the optimal casting method depends on several factors including part geometry, required tolerances, production volume, and specific alloy requirements. Investment casting provides the highest precision and best surface finish but at higher cost per piece. Shell molding offers an excellent balance of accuracy and economy for medium-volume production.

Green sand casting remains the most economical choice for larger parts and lower volumes, while black sand provides enhanced properties for demanding applications. Centrifugal casting is unmatched for cylindrical components requiring maximum density and structural integrity.

Quality Assurance and Testing

Our foundry maintains rigorous quality standards throughout the phosphor bronze casting process. We perform chemical analysis on every heat to ensure alloy composition meets specifications, while mechanical testing verifies strength and hardness requirements. Dimensional inspection using coordinate measuring machines confirms adherence to drawing tolerances.

Non-destructive testing including radiographic and ultrasonic inspection identifies any internal defects, while pressure testing validates the integrity of components destined for fluid handling applications. Our quality system ensures that every phosphor bronze casting meets or exceeds customer expectations.

Applications Across Industries

Phosphor bronze castings serve critical roles across numerous industries. In marine applications, the alloy’s corrosion resistance makes it indispensable for propellers, rudders, and through-hull fittings. The aerospace industry relies on phosphor bronze for bushings, actuator components, and electrical contacts where reliability is paramount.

Industrial machinery utilizes phosphor bronze bearings, wear plates, and springs where the combination of strength and corrosion resistance extends service life. The electrical industry depends on phosphor bronze’s conductivity and spring properties for switches, connectors, and circuit breaker components.

Future of Phosphor Bronze Casting

Advancing technology continues to improve phosphor bronze casting capabilities. Computer modeling and simulation optimize gating and risering systems, reducing material waste while improving casting quality. Advanced melting practices enhance alloy cleanliness and consistency, while automated inspection systems ensure unprecedented quality control.

Environmental considerations drive development of more sustainable casting practices, including improved energy efficiency and recycling programs that take advantage of phosphor bronze’s excellent recyclability. These advances ensure that phosphor bronze casting will continue meeting evolving industrial needs while maintaining our commitment to environmental responsibility.

Conclusion

Phosphor bronze casting combines time-tested metallurgy with modern foundry techniques to produce components that excel in demanding applications. Our comprehensive casting capabilities, from precision investment casting to high-volume green sand production, ensure optimal solutions for every project requirement.

Whether your application demands the precision of shell molding, the versatility of green sand casting, or the structural integrity of centrifugal casting, our expertise in phosphor bronze alloys guarantees superior results. Contact our technical team to discuss how our phosphor bronze casting capabilities can enhance your next project’s success.
