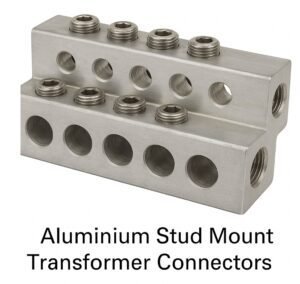

ZEE Series Aluminium Connectors, Stud-Mount Transformer Connectors, for Pad-Mounted Transformers

Stud-Mount Transformer Connectors, Aluminum Stud Mound Connectors, – Aluminium Connectors for Pad-Mounted Transformers

Top Quality Aluminium Connectors Stud Mounted Aluminum Connectors for Transformers. Aluminium Z type Ground bars and connectors

Price- US$ 11.85/kilogram

Aluminium Stud Mount Connectors are heavy-duty electrical components designed for secure, reliable connections in high-current applications. Engineered for durability and performance, these connectors are ideal for transformers, switchgear, busbars, and renewable energy systems. Crafted from high-grade aluminium alloys, they offer exceptional conductivity, corrosion resistance, and lightweight advantages over traditional copper alternatives. We are a leading Indian manufacturers of Aluminium Connectors Stud Mounted Aluminum Connectors for Transformers. Aluminium Z type Ground bars and connectors from jamnagar, India.

Stud-Mount Transformer Connectors Stud-Mount Transformer Connectors made from AA-6101 Aluminium alloy are essential components used in pad-mounted distribution transformers where secure, high-conductivity connections are required for secondary bushings. These connectors simplify field installations by allowing for quick-disconnect operations without requiring repositioning of the conductor. Engineered to evenly distribute mechanical load and electrical current, they improve safety, reliability, and performance in both indoor and outdoor power distribution systems.

Aluminum Stud-Mount Connectors Aluminum Stud-Mount Connectors are made from high-strength, corrosion-resistant Aluminium alloys and are widely used across transformer terminals, switchgear, and substation systems. With precision-formed threads and stud holes, these connectors provide uniform torque engagement, improved conductivity, and long-term stability under harsh operating conditions. Their light weight and ease of handling make them ideal for utility and OEM applications where reliability and ease of installation are key.

Aluminium Connectors for Pad-Mounted Transformers Our Aluminium Connectors for Pad-Mounted Transformers are designed to meet ANSI and UL specifications for secondary bushing terminals. Available in multiple outlet configurations and conductor ranges, these connectors accept both Aluminium and Copper conductors, enabling flexible installation in compact transformer cabinets. Each connector is tested for current-carrying capacity, mechanical strength, and environmental resistance, making them the preferred choice for dependable utility-grade transformer connections.

We are proud to offer a high-performance range of Stud-Mount Aluminum Transformer Connectors crafted from high-conductivity Aluminium. These connectors are designed for pad-mounted distribution transformers that have a set of secondary bushings and use stud mounting holes. Our universal series includes quick-disconnect types that simplify installation and reduce the need for repositioning during maintenance.

Key Features:

• Available in Z series with clear PVC lock-on insulating covers and Z-E  series with optional clear drop-on covers.
• The connector design evenly distributes force over the full thread of the stud, regardless of mounting configuration.
• Zee Bar  design for balanced and secure tightening of torque bolts.
• Outlets accept both copper and aluminium conductors.
• Machined from high-strength Aluminium for high conductivity and corrosion resistance.
• Easy to install, highly versatile and compliant with ANSI C119.4.
• Optional covers provide protection and additional insulation.

Product Range

Z Series with Optional Drop-on Covers

Applications:

• Secondary bushings of pad-mounted distribution transformers
• Indoor and outdoor power systems
• Quick-disconnect utility field connections

Why Choose Our Aluminum Stud-Mounted Connectors?

• Designed and tested for rugged field conditions
• Highly conductive aluminium alloy, RoHS-compliant
• Custom logo and labeling available on request
• Faster lead times and flexible order quantities
• Over 30 years of global manufacturing and export experience
• Material: Premium AA-6101 Aluminium alloy, heat-treated for optimal strength and conductivity.
• Corrosion Resistance: Anodized or tin-plated finish to prevent oxidation in harsh environments.
• High Conductivity: Low electrical resistance ensures efficient power transmission.
• Mechanical Durability: Rated for high torque (e.g., 50 Nm) to withstand vibration and thermal cycling.
• Versatile Sizing: Compatible with stud diameters from ½” to 1¼” (M12 to M30).
• Easy Installation: Precision-engineered design for tool-free or wrench-tightened assembly.

For datasheets, technical drawings, or to place an order, contact us by email.
