Brass 4 Way Earth Blocks & Brass 8 Way Earth Blocks Manufacturer and Exporter – India
We are one of the leading manufacturers and exporters of Brass Earth Blocks from India. We have been supplying precision-engineered Brass 4 Way and 8 Way Earth Blocks, Nickel Plated Brass Earth Blocks, Tin Plated Brass Earth Blocks, and Brass Terminal Bars to the world market for many decades. Our modern CNC machining facility helps churn out high quality Brass earth blocks at best possible rates.
Our products are used extensively in electrical grounding systems, switchgear assemblies, panel boards, control panels, and distribution boxes, delivering superior conductivity, corrosion resistance, and mechanical strength. Designed and machined under stringent quality norms (ISO 9001:2015), our Brass Earthing Blocks meet BS, IS, ASTM, DIN, and JIS standards, ensuring compatibility with international electrical systems.
Our team combines three decades of global engineering experience, world-class CNC/VMC manufacturing, and metallurgical expertise to provide tailor-made solutions to OEMs, wholesalers, and electrical installation companies worldwide.
Overview
Brass Earth Blocks are precision-machined electrical connectors designed for safe earthing and distribution of current in multi-circuit installations. Available in 4-way and 8-way configurations, these blocks provide reliable mechanical strength, exceptional current-carrying capacity, and high resistance to corrosion.
Each unit is manufactured from high-conductivity Brass (CuZn39Pb3 / C36000 / CW614N / JIS C3604 / H59) with optional Nickel or Tin plating for enhanced oxidation protection and improved torque stability.

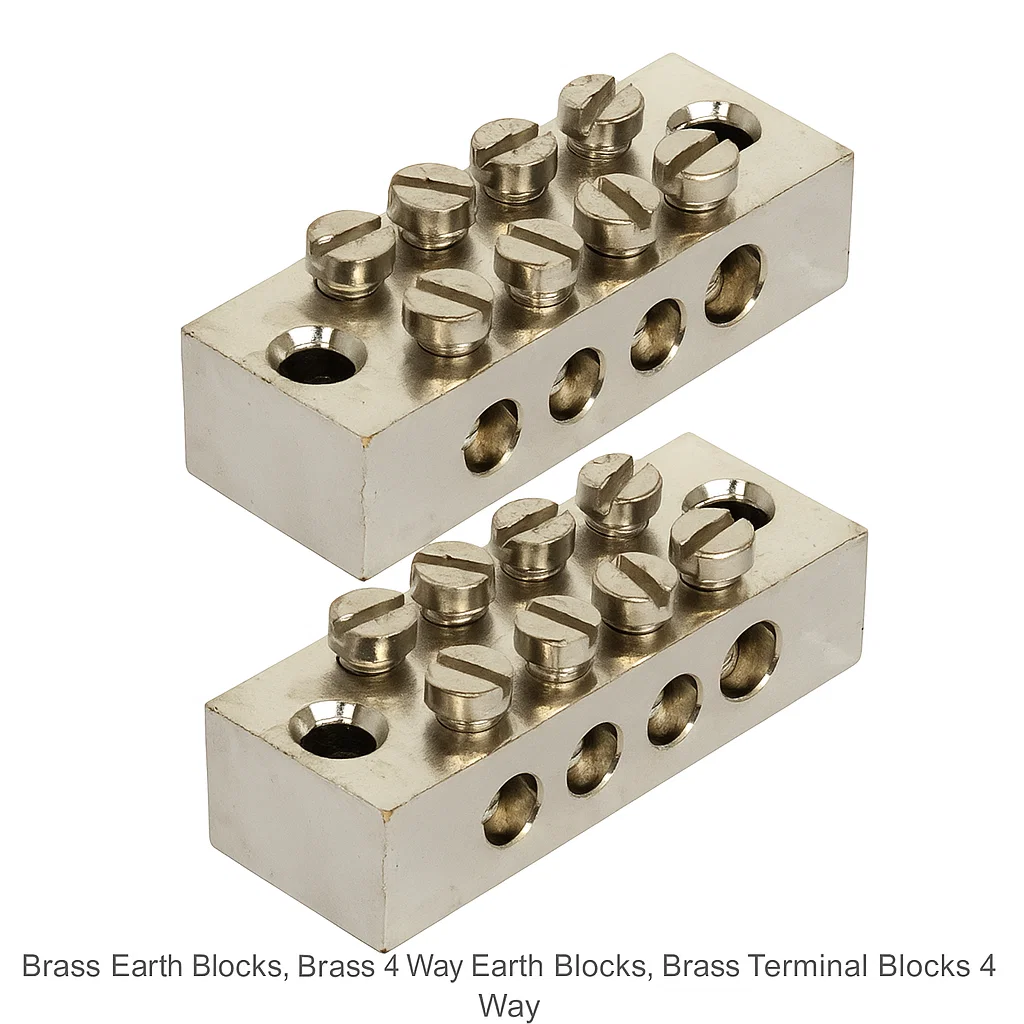

Brass 4 Way Earth Blocks
Brass 4 Way Earth Blocks are compact grounding components used in confined electrical panels or small terminal boxes. They feature four threaded ways for multiple wire terminations, machined with precision to ensure tight screw fit and minimal contact resistance.
Applications include lighting fixtures, small distribution boxes, automotive grounding kits, and electronic assemblies.
Material Grades:
IS 319 Type (I) / BS 2874 CZ121 / ASTM B16 C36000 / EN CW614N / JIS C3604 / Chinese H59 Brass
Manufacturing Process:
Brass Extrusion → Precision CNC Machining → Deburring → Thread Rolling → Nickel/Tin Electroplating → Inspection
Machinery Used:
CNC/VMC Centers, Tapping Machines, Automatic Bar Feeders, Digital Micrometers, Vision Measuring Systems
Typical Dimensions:
| Sr. No. | Ways | Length (mm) | Width (mm) | Height (mm) | Hole Dia (mm) | Screw Type |
|---|---|---|---|---|---|---|
| 1 | 4 | 32 | 12 | 12 | 5.0 | M5 Slotted Screws |

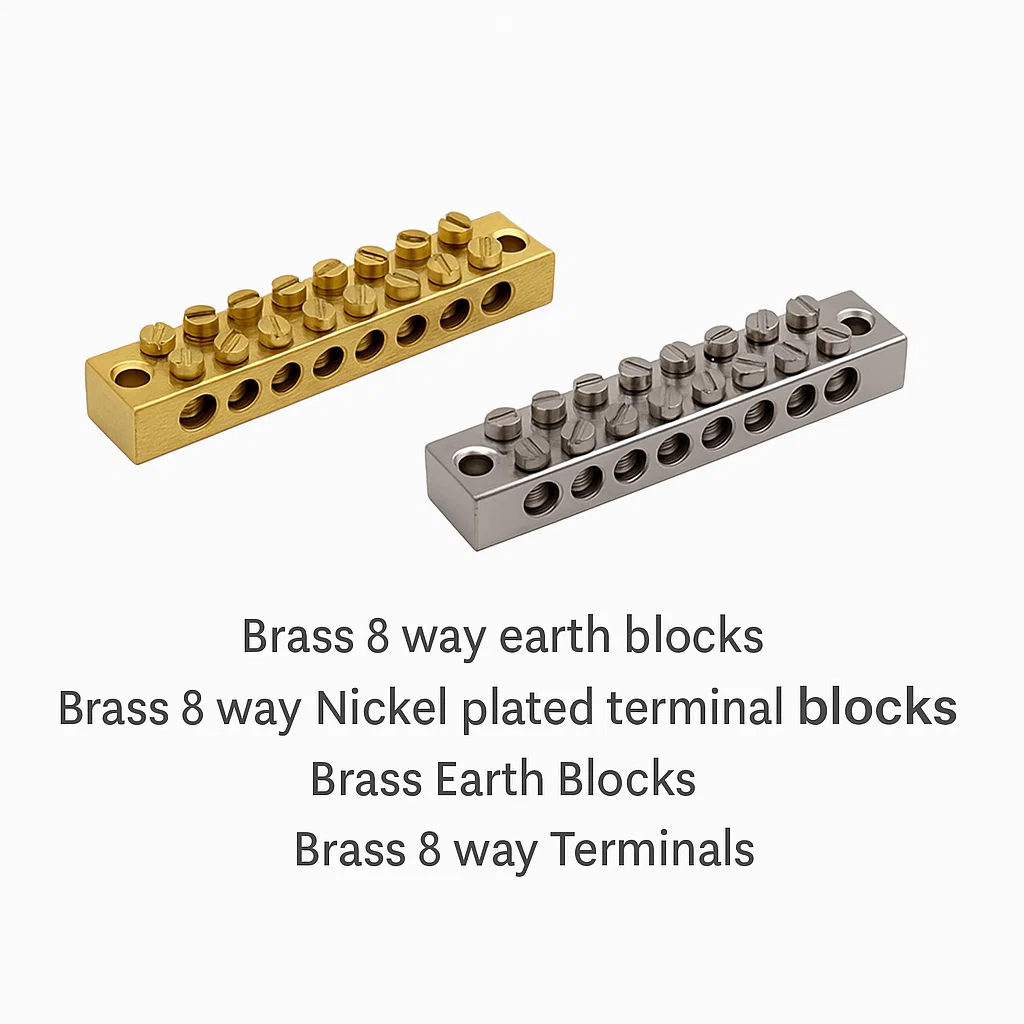

Brass 8 Way Earth Blocks
Brass 8 Way Earth Blocks are ideal for busbar and large distribution panels where multiple circuits require a common earth terminal. These heavy-duty blocks ensure uniform current flow and vibration resistance under high-load conditions.
Material Options:
C36000 (ASTM) / CW614N (EN) / CZ121 (BS) / H59 (China) / C3604 (Japan)
Process:
Forged or Machined from Solid Brass Rods → Threading → Electroplating → Torque Testing
Dimensional Chart:
| Sr. No. | Ways | Length (mm) | Width (mm) | Height (mm) | Hole Dia (mm) | Screw Type |
|---|---|---|---|---|---|---|
| 1 | 8 | 64 | 12 | 12 | 5.0 | Â M5 Slotted Screws |
Industries Served:
Electrical Panels, Transformer Manufacturing, Railway Signalling, Industrial Automation, Power Distribution, Renewable Energy Systems (Solar / Wind)
Nickel Plated Brass Earth Blocks
Nickel plating provides a durable, oxidation-resistant surface, improving appearance and mechanical integrity.
Advantages: Excellent wear resistance, low contact resistance, stable torque values, and extended service life even in coastal or humid environments.
Plating Thickness: 5–10 microns (as per ASTM B733 Type 2, Class 5)
Tin Plated Brass Earth Blocks
Tin plating improves solderability and corrosion resistance in moisture-prone installations.
Used widely in marine, solar, and industrial electrical control systems, Tin-plated variants comply with ASTM B545, BS 1872, and RoHS requirements.
Plating Thickness: 5–8 microns

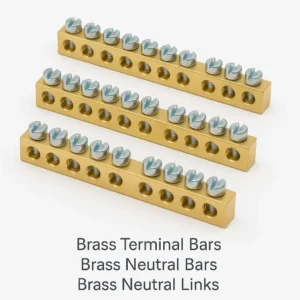

Brass 4 & 8 Way Terminal Bars
Brass Terminal Bars (also known as Neutral or Earth Bars) are available in both 4-way and 8-way versions, precision machined for uniform torque control and maximum current conduction. Each terminal bar can be customized with or without mounting holes, screws, or insulating bases.
Customization:
Any hole configuration or pitch
Custom screw sizes and thread standards (UNC, UNF, Metric)
Engraved or laser-marked part numbers
Customer logo packaging
Material Properties
| Property | Unit | Typical Value |
|---|---|---|
| Electrical Conductivity | % IACS | 26–28 |
| Tensile Strength | MPa | 360–440 |
| Elongation | % | 20–25 |
| Hardness | HV | 100–120 |
| Density | g/cm³ | 8.4 |
| Melting Point | °C | 900–940 |
Tolerances
Machining Tolerances: ±0.05 mm
Thread Tolerance: ISO 6H / Class 2B
Surface Finish: Ra ≤ 1.6 µm
Performance Metrics
Current Carrying Capacity: Up to 250 A (depending on section)
Torque Strength: 2–3 Nm for M4 screws
Thermal Stability: 180 °C continuous rating
Corrosion Resistance: 500 hours salt spray (Nickel plated)
Turnaround Time
4–6 weeks typical lead time for bulk export orders.
Expedited orders possible based on tooling and plating line availability.
Packaging & Shipping
Each batch is vacuum-sealed in anti-tarnish polybags, packed in corrugated cartons or wooden crates with customer-specific labeling, QR codes, and export documentation.
Worldwide shipping via DHL, FedEx, or sea freight from Nhava Sheva (Mumbai Port).
Why Choose Us
Over 30 years of global manufacturing and export experience
Flexible production schedules and MOQ options
In-house design support and drawing optimization
Strict quality control with 100% dimensional and torque testing
Customized packaging with logo or barcode labeling
Responsive customer communication and technical assistance
Typical Q & A
What material is used for your Brass Earth Blocks?
We use high-conductivity Brass grades like C36000, CW614N, and CZ121 for maximum durability.Can you provide Nickel and Tin plating both?
Yes, we offer both Nickel and Tin plating up to 10 microns.What standards do your products meet?
Comply with ASTM B16, BS 2874, IS 319, and RoHS requirements.Do you offer custom hole patterns?
Yes, hole configuration, pitch, and screw sizes can be customized.How many ways are available?
Standard 4-way and 8-way designs, with custom 10-way or 12-way on request.Do you export to the UK or Europe?
Yes, we supply regularly to UK, Germany, Italy, and other EU countries.What plating thickness do you offer?
Nickel 5–10 µm, Tin 5–8 µm, as per ASTM standards.What testing do you perform?
Dimensional accuracy, torque test, and conductivity check.Do you provide material certificates?
Yes, we provide EN 10204 3.1 certificates upon request.Can I get samples?
Free samples available for OEM evaluation.What is your MOQ?
Usually 500–1000 pcs depending on size.Do you have RoHS and REACH compliance?
Fully compliant and environmentally safe.Can you mark part numbers or logos?
Yes, laser engraving and stamping options available.What surface finish is standard?
Mirror bright finish (Ra ≤ 1.6 µm).What is your typical lead time?
4–6 weeks from order confirmation.
Customer Testimonials
John R., Birmingham,UK:
“The Brass Earth Blocks from this supplier exceeded our expectations — accurate machining, perfect plating, and timely delivery. Excellent communication throughout.”
Alan P., Southampton, UK:
“We’ve used their Brass 8-way terminal bars for our solar projects. Outstanding quality and finish — we’ll continue sourcing from them.”
Glossary of Terms (with Keywords)
Earth Block: Brass electrical connector for grounding multiple wires.
Terminal Bar: Common neutral or earth distribution bar.
Nickel Plating: Electro-deposited Nickel layer improving corrosion resistance.
Tin Plating: Surface coating enhancing solderability and oxidation protection.
Torque Test: Measurement of screw tightness and thread strength.
C36000 / CW614N / CZ121: Standard Brass alloys used in electrical parts.
Ra (Roughness Average): Indicator of surface smoothness.
Related Parts:
Brass Neutral Bar, Brass Grounding Terminal, Brass Earthing Connector, Nickel Plated Terminal Block, Tin Plated Earth Bar, Brass Electrical Connector, Machined Brass Terminal Bar, Electrical Earthing Accessories Manufacturer India
