Bronze Eye Bolts Bronze Terminals For LV Transformer Bushings
Bronze Eye Bolts and Bronze Terminals
Premium Components for Transformer LV Bushing Assembly

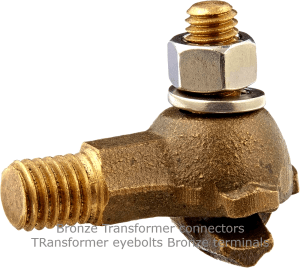

Bronze Eye Bolts Terminals and Transformer Tank Connectors
Bronze Eye Bolts and Bronze Terminals are critical components in transformer LV (Low Voltage) bushing assembly. Designed for reliability and durability, these components ensure secure and efficient connections between transformer parts. Commonly paired with Copper studs or threaded rods, they are an industry standard for bushing assemblies, often tin-plated to enhance conductivity and resist corrosion. These Bronze Eye bolts and Terminals are cast, Machined, Roll threaded with tin plating.

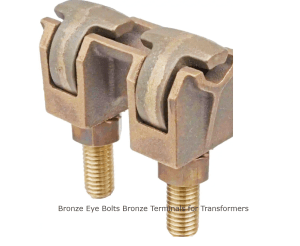

Bronze Eye Bolts and Terminal Baskets serve as critical connection points on Low Voltage (LV) transformer bushings, providing secure mechanical and electrical interfaces for conductor attachments. These components are manufactured through a precise two-stage process: the main body is first cast in high-grade bronze to ensure excellent conductivity and corrosion resistance, while the threading is subsequently rolled rather than cut, resulting in superior mechanical strength and enhanced load-bearing capabilities. The cast construction allows for optimal material distribution in high-stress areas, particularly around the eye opening where mechanical loads are concentrated.
The terminal baskets, which integrate seamlessly with these eye bolts, are specifically designed to accommodate various conductor sizes while maintaining proper electrical clearances and preventing corona discharge. Their bronze composition offers an ideal balance of electrical conductivity and mechanical durability, crucial for long-term reliability in transformer applications. The rolled threading process creates a compressed grain structure in the metal, significantly improving the fatigue resistance and thread engagement characteristics compared to traditional cut threads, making these components particularly well-suited for applications involving thermal cycling and vibration typical in transformer operations.
Key Features
- Material: High-quality Bronze material cast at our Bronze casting foundry using Shell moulding and green sand casting for durability and superior conductivity.
- Thread Sizes: Available in 5/16″ 3/8″ , 1/2″ UNC threading for compatibility with various applications.
- Surface Finish: Tin-plated for improved electrical conductivity and corrosion resistance.
- Precision Engineering: Manufactured to precise standards for seamless integration with copper studs and threaded rods.
Applications
Bronze Eye Bolts and Terminals are widely used in transformer LV bushing assemblies to establish secure and stable connections. Their robust construction and excellent conductivity make them suitable for:
- Power transformers
- Distribution transformers
- Industrial electrical assemblies
Why Choose Our Products?
Our Bronze Eye Bolts and Bronze Terminals are sourced from industry-leading companies in the USA. These components undergo stringent quality checks to ensure they meet the highest standards of performance and reliability.
- High-grade materials for long-lasting performance
- Precision threading for secure and accurate assembly
- Trusted by professionals worldwide
Specifications
| Component | Material | Thread Size | Finish |
|---|---|---|---|
| Bronze Eye Bolt | Bronze | 5/16″ UNC | Tin-plated |
| Bronze Eye Bolt | Bronze | 3/8″ UNC and 1/2″ UNC | Tin-plated |
| Bronze Terminal | Bronze | 5/16″ UNCÂ , 3/8″ UNC, 1/2″ UNC | Tin-plated |
| Bronze Grade | Typical Applications | Properties |
|---|---|---|
| CDA 954 | Bearings, bushings, gears, and marine components | High strength, corrosion resistant |
| CDA 956 | High-load bearings, bushings, and industrial applications | Excellent wear resistance, toughness |
| CDA 836 | Plumbing, fittings, and low-pressure applications | Good machinability, cost-effective |
| CDA 863 | Heavy-duty bearings, hydraulic systems, and gears | High wear resistance, durable |
| CDA 872 | Pumps, valves, and industrial machinery | Excellent machinability, moderate strength |
| CDA 655 | Marine hardware, industrial bushings | High corrosion resistance, good strength |
| CDA 544 | Electrical connectors, instrumentation components | Superior machinability, good strength |
Contact Us
If you’re looking for reliable Bronze Eye Bolts and Bronze Terminals, Copper Studs, Transformer Tank Connectors, contact us today. Our team is ready to assist you with your requirements.
