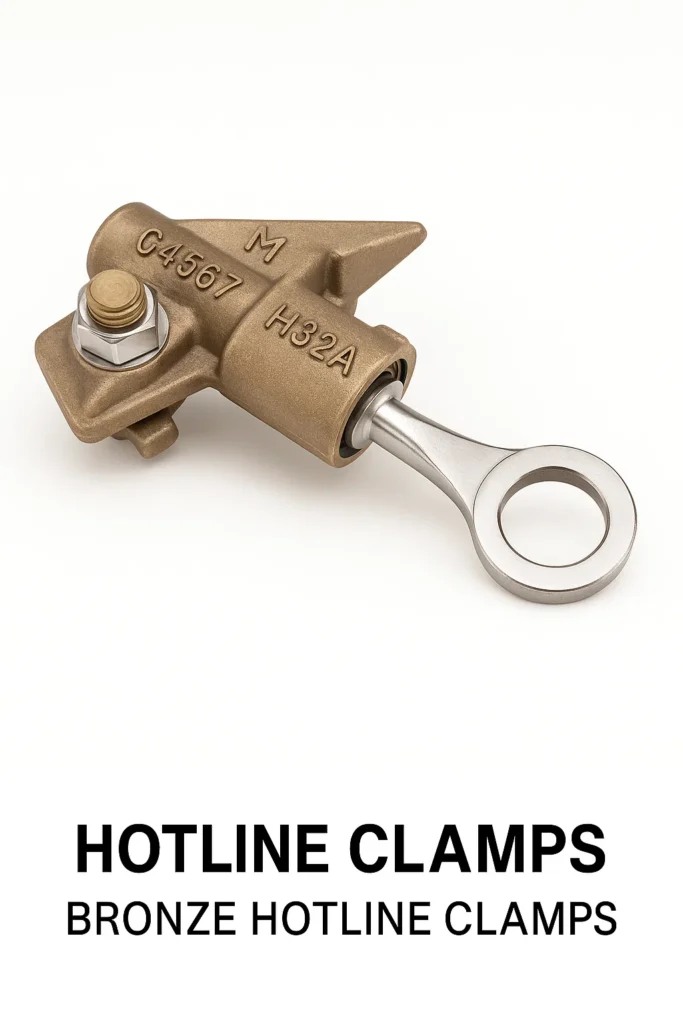

Precision Hotline Clamps, Bronze Hotline Clamps for Utility Power Transmission

PRICE: US$ 4.01/each

The Bronze Hotline Clamp is a high-conductivity electrical grounding component designed for secure and durable connections in power transmission and distribution systems. Manufactured from corrosion-resistant Bronze alloys, it ensures excellent mechanical strength and long-term reliability even under harsh environmental conditions. These clamps are primarily used to establish hot-line tap connections on conductors, typically in substations and overhead line applications. Their robust design allows for easy installation using hot-stick tools without interrupting power flow, making them ideal for live-line maintenance. Bronze Hotline Clamps are available in various sizes to accommodate different conductor diameters and are engineered to meet stringent electrical utility standards for conductivity, tensile strength, and resistance to thermal cycling.

Premium overhead hot line clamps engineered for exceptional conductivity, durability, and performance in demanding electrical utility applications.

Key Features

Superior Conductivity

Our bronze hotline clamps are manufactured using high-copper bronze alloys, ensuring excellent electrical conductivity for efficient power transmission with minimal resistance and energy loss.

Corrosion Resistance

Premium bronze construction provides exceptional corrosion resistance against harsh environmental conditions, salt spray, pollution, and chemical exposure, guaranteeing long-term performance.

Heavy-Duty Design

Engineered for maximum mechanical strength with reinforced components and robust construction to withstand high mechanical loads and severe weather conditions in utility applications.

Secure Connections

Precision-machined jaws and advanced clamping mechanisms ensure secure connections to overhead conductors, preventing slippage and maintaining consistent contact pressure for reliable operation.

Bronze Hotline Clamp Specifications

Additional Technical Specifications:

• Operating Temperature Range: -40°F to 220°F (-40°C to 105°C)
• Contact Resistance: <50 microohms
• Threaded Stud Sizes: 3/8″, 1/2″, 5/8″
• Clamping Force: 500-2000 lbs depending on model
• Compliance: ANSI C119.4, NEMA CC1, IEEE 837
• Service Life: 25+ years under normal operating conditions

Applications for Bronze Hotline Clamps

Temporary Jumper Connections

Create bypass circuits during maintenance operations or emergency repairs on overhead distribution and transmission lines.

Hot Line Maintenance

Facilitate live-line maintenance procedures without service interruption on energized conductors.

Grounding Systems

Connect temporary grounds to overhead conductors during maintenance work to ensure worker safety.

Testing Equipment Connection

Provide secure connection points for voltage testers, load analyzers, and other diagnostic equipment.

Emergency Repairs

Enable quick temporary connections during storm restoration and emergency repair operations.

Substation Work

Create temporary connections within substations during maintenance, upgrades, or modifications.

Advanced Features

Advanced Bronze Metallurgy

Our hotline clamps utilize specialized high-copper bronze alloys with precisely controlled tin content to optimize conductivity while maintaining excellent mechanical properties and corrosion resistance.

Precision-Machined Threads

All threaded components are precision-machined to ensure smooth operation, proper torque distribution, and long-term stability of connections even after multiple use cycles.

Ergonomic Hot Stick Operation

Designed with utility workers in mind, our hotline clamps feature optimized eye-screw designs for secure hot stick attachment and easy installation from safe working distances.

Quality Assurance

Every bronze hotline clamp undergoes rigorous testing including conductivity verification, mechanical load testing, and dimensional inspection before leaving our manufacturing facility.

Frequently Asked Questions About Bronze Hotline Clamps

Why choose bronze over aluminum for hotline clamps? Bronze hotline clamps offer superior durability, higher current capacity, better corrosion resistance, and more reliable performance in harsh environments compared to aluminum alternatives. The higher conductivity of bronze also ensures lower heat generation at connection points, reducing the risk of thermal damage to conductors during high-load periods.

What is the expected service life of a bronze hotline clamp? When properly maintained, our bronze hotline clamps can provide reliable service for 25+ years under normal operating conditions. The exceptional corrosion resistance of bronze and robust mechanical design ensures long-term performance even in challenging outdoor environments with exposure to various weather conditions.

Are these clamps suitable for both copper and aluminum conductors? Yes, our bronze hotline clamps are designed for universal compatibility with both copper and aluminum conductors. The design incorporates features to minimize galvanic corrosion when used with aluminum, ensuring secure connections regardless of conductor material type.

What maintenance is required for bronze hotline clamps? Bronze hotline clamps require minimal maintenance. Periodic visual inspection for signs of corrosion or mechanical damage is recommended. Cleaning contact surfaces and applying approved electrical joint compound before reinstallation can help maintain optimal performance during reuse cycles.

Can these clamps be used in coastal environments with high salt exposure? Yes, bronze hotline clamps are particularly well-suited for coastal environments due to their excellent resistance to salt spray corrosion. The tin content in the bronze alloy forms a protective patina that shields the base metal from progressive degradation in high-salinity conditions.

Similar terms

• bronze hotline clamps
• overhead hot line clamps
• utility bronze clamps
• bronze mechanical clamps
• overhead conductor clamps
• electrical hotline clamps

• transmission line hardware
• utility power transmission clamps
• bronze jumper clamps
• temporary connection clamps
• distribution line equipment
• hot line maintenance tools
• bronze utility connectors
• high-copper bronze clamps
• corrosion-resistant line clamps
• utility conductor connectors

Contact Us for Bronze Hotline Clamp Solutions

Our engineering team can develop custom hotline clamp solutions for specific utility applications and conductor types. Contact our technical team today for product information or to discuss your specific requirements.
