+ + DIN 84 screws Cheese head DIN 84 Slotted Machine screws
DIN 84 screws Cheese head DIN 84 Slotted Machine screws

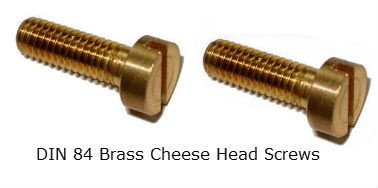

din_84_screws_01  brass_cheese_head_screws_brass_din_84_slotted_cheese_head_screws



din_84_screws_2



DIN 84  ISO 1207 Cheese head Screws DIN 84 Slotted Cheese head machine screws

Material:BRASS STAINLESS STEEL 304 316 A1 A4

Diameter Thread Size M2 M2.5 M3 M4 M5 M6 M8 M10
t min Slot Depth 0.6 0.7 0.9 1.2 1.5 1.8 2.1 2.4
n Slot Width 0.5 0.6 0.8 1 1.2 1.6 2 2.5
k max head Thickness 1.3 1.6 2 2.6 3.3 3.9 5 6
d1 max 3.8 4.5 5.5 7 8.5 10 13 16
