Electrical safety in power distribution systems relies heavily on proper grounding, and at the heart of transformer grounding systems are specialized components known as Bronze transformer ground clamps or transformer ground connectors. These critical safety devices provide the essential electrical connection between transformer tanks and grounding conductors, ensuring safe operation and protection against electrical faults.

Understanding Transformer Ground Clamps

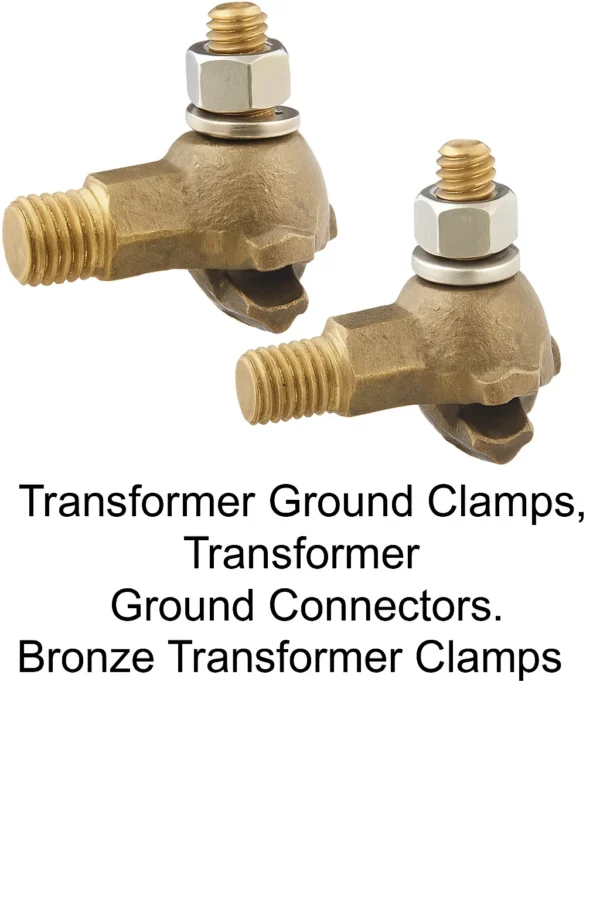

Transformer ground clamps are precision-engineered electrical connectors designed to create a secure, low-resistance connection between transformer tanks and grounding systems. Transformer ground clamps are used for clamping conductors to flat surfaces and acts as a seal to a transformer tank. These components play a crucial role in electrical safety by providing a reliable path for fault currents to flow safely to ground.

The primary function of these clamps extends beyond simple mechanical connection. They ensure electrical continuity, minimize resistance, and provide long-term reliability in harsh environmental conditions. Without proper grounding through quality transformer ground clamps, electrical systems face significant safety risks including equipment damage, fire hazards, and potential injury to personnel.

Bronze Transformer Clamps: The Material Advantage

Bronze transformer clamps represent the premium choice for grounding applications due to Bronze’s unique properties. Bronze transformer tank connectors and grounding clamps are specialized components used in power transformers to facilitate electrical connections between the transformer windings and external circuits. These connectors are made from Bronze, an alloy composed primarily of Copper and tin, offering unique properties and advantages.

Why Bronze Excels in Grounding Applications

Bronze offers several distinct advantages for transformer grounding applications:

Superior Corrosion Resistance: Bronze’s natural resistance to corrosion makes it ideal for outdoor installations where transformer ground clamps face constant exposure to moisture, chemicals, and temperature fluctuations. This corrosion resistance translates to longer service life and reduced maintenance requirements.

High Electrical Conductivity: The Copper base of Bronze alloys provides excellent electrical conductivity, ensuring low-resistance connections that are essential for effective grounding systems. This high conductivity minimizes voltage drop and ensures rapid fault current conduction.

Mechanical Strength: Cast from high conductivity, high strength copper alloy with cast high strength bronze eyebolts. Stainless steel nuts and lockwashers are standard on all clamps. The robust mechanical properties of Bronze ensure that transformer ground clamps maintain their integrity under mechanical stress and thermal cycling.

Chemical Compatibility: Bronze’s compatibility with various environmental conditions and chemicals makes it suitable for diverse installation environments, from coastal areas with salt exposure to industrial facilities with chemical atmospheres.

Technical Specifications and Standards

Modern transformer ground clamps must meet stringent technical specifications to ensure reliable performance. Yes, our Transformer Ground Connectors meet UL 467, IEEE 837, and NEC grounding standards to ensure safe and reliable performance in electrical grounding applications. Compliance with ASTM B584 ensures material quality and long-term durability.

Conductor Size Compatibility Chart

Transformer ground clamps are designed to accommodate various conductor sizes, from small residential applications to large industrial installations. The following table provides comprehensive conductor size compatibility for different transformer ground clamp models:

Conductor Size Reference Guide

AWG (American Wire Gauge) Explanation:

• Solid (SOL): Single solid conductor wire
• Stranded (STR): Multiple wire strands twisted together for flexibility
• MCM/kcmil: Thousand Circular Mils – used for conductors larger than 4/0 AWG

Common Conductor Sizes and Applications:

Regional Variations and International Standards

Different regions may use varying conductor size designations:

North American Standards (AWG/MCM):

• Based on American Wire Gauge system
• MCM (Thousand Circular Mils) for large conductors
• Standardized under ASTM B258

European Standards (mm²):

• Cross-sectional area in square millimeters
• IEC 60228 international standard
• Common sizes: 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²

Conversion Reference:

• 1 MCM = 0.5067 mm²
• 250 MCM ≈ 127 mm²
• 500 MCM ≈ 253 mm²
• 1000 MCM ≈ 507 mm²

Key Technical Features

Conductor Range Flexibility: Our product is suitable for grounding transformers with conductors in the range of 8 SOL to 2/0 STR, providing greater flexibility with your electrical installation and fitting This wide range accommodation allows for standardization across different transformer sizes while maintaining optimal electrical performance.

Enhanced Corrosion Protection: Tin plated ground clamps provide additional corrosion resistance in harsh environments, protecting the copper-alloy body from the elements Tin plating provides an additional protective layer that extends service life in challenging environmental conditions.

Standardized Threading: The Transformer ground connectors – Transformer Ground clamps feature a ½ to 13 stud thread size that fits all standard EEI-NRMA distribution transformers. This standardization ensures compatibility across different transformer manufacturers and models.

Installation and Application Guidelines

Proper installation of transformer ground clamps is critical for electrical safety and system reliability. Simple Installation: our range of transformer ground clamps and transformer Bronze connectors -Transformer tank connectors may be tightened to the transformer using a wrench on the body for a quick and easy assembly

Installation Best Practices

Surface Preparation: Before installation, ensure all contact surfaces are clean, free from oxidation, and properly prepared. Remove any paint, coating, or corrosion from the transformer tank mounting surface to ensure optimal electrical contact.

Proper Torque Application: Follow manufacturer specifications for bolt torque to ensure adequate clamping force without over-stressing the clamp body or mounting surface. Proper torque ensures both mechanical security and electrical continuity.

Environmental Considerations: Consider environmental factors such as temperature cycling, moisture exposure, and chemical atmosphere when selecting clamp specifications and protective coatings.

Inspection and Maintenance: Regular inspection of transformer ground clamps should include checking for corrosion, mechanical damage, loose connections, and signs of overheating.

Material Grade Specifications

Material grade used for casting Bronze Transformer ground connectors , Transformer tank Connectors Grounding Clamps: CDA 954 C95400 CDA 955 C95500 CDA 956 C95600

These Bronze alloys are specifically selected for their optimal balance of electrical conductivity, mechanical strength, and corrosion resistance. Each grade offers specific advantages:

• C95400 (Aluminum Bronze): Excellent strength and corrosion resistance
• C95500 (Nickel Aluminum Bronze): Enhanced mechanical properties and wear resistance
• C95600 (Nickel Aluminum Bronze): Superior corrosion resistance for marine environments

Quality Manufacturing Processes

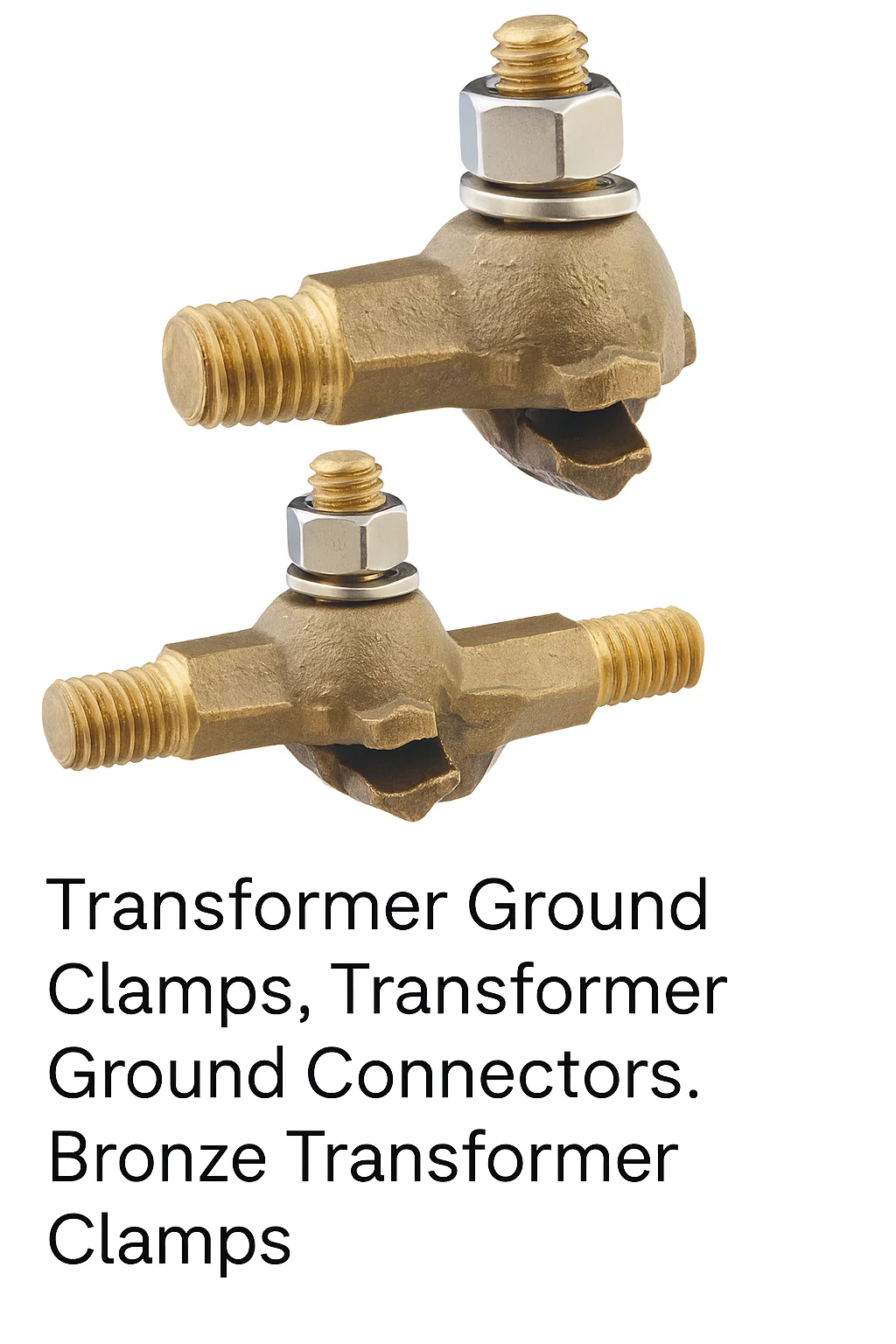

High Quality: Two-way ground clamps are made from high conductivity, high strength copper alloy, have high strength bronze eyebolts and stainless-steel hardware for durable, long-term use

Quality transformer ground clamps undergo precision casting processes that ensure consistent material properties and dimensional accuracy. The manufacturing process typically includes:

• Precision Sand Casting: Creates the complex geometries required for optimal electrical and mechanical performance
• Heat Treatment: Optimizes material properties for strength and conductivity
• Machining Operations: Ensures precise threading and contact surfaces
• Surface Treatment: Applies protective coatings where specified
• Quality Testing: Verifies electrical, mechanical, and dimensional specifications

Applications Across Industries

Transformer ground clamps find application across diverse sectors:

Utility Power Distribution: Primary application in electrical substations and distribution transformers where reliable grounding is essential for system protection and personnel safety.

Industrial Facilities: Manufacturing plants, refineries, and chemical processing facilities require robust grounding systems to protect expensive equipment and ensure worker safety.

Commercial Buildings: Office complexes, hospitals, and educational institutions depend on properly grounded electrical systems for fire safety and equipment protection.

Renewable Energy: Solar and wind installations use transformer ground clamps in inverter stations and collection substations.

Safety Considerations and Code Compliance

Transformer neutrals must be connected to two distinct and independent earth electrodes and double earthed with (SIZE) copper flats. This requirement emphasizes the critical safety function of proper transformer grounding.

Proper grounding through quality transformer ground clamps provides multiple safety benefits:

• Fault Current Path: Provides a low-impedance path for fault currents to flow safely to ground
• Equipment Protection: Prevents damage to transformers and connected equipment during fault conditions
• Personnel Safety: Reduces the risk of electric shock and electrocution
• Fire Prevention: Minimizes the risk of electrical fires caused by ground faults

Customization and Special Applications

Yes, we manufacture custom Transformer Ground Connectors tailored to specific conductor sizes, mounting configurations, and electrical requirements. Options for custom engraving, private labeling, and special coatings are also available upon request.

Modern manufacturers offer customization options to meet specific application requirements:

• Special Conductor Sizes: Custom clamps for non-standard conductor configurations
• Unique Mounting Requirements: Modified designs for specific transformer tank configurations
• Enhanced Coatings: Specialized surface treatments for extreme environmental conditions
• Marking and Identification: Custom engraving for asset management and traceability

Future Trends and Innovations

The transformer ground clamp industry continues evolving with advances in materials science and manufacturing technology. Emerging trends include:

Advanced Alloys: Development of new Bronze alloys with enhanced properties for specific applications Smart Monitoring: Integration of sensors for real-time monitoring of connection integrity Environmental Compliance: Lead-free formulations meeting evolving environmental regulations Modular Designs: Standardized components that allow for easier installation and maintenance

Conclusion

Transformer ground clamps represent a critical component in electrical safety systems, with Bronze transformer clamps offering superior performance through their unique combination of electrical, mechanical, and corrosion-resistant properties. Proper selection, installation, and maintenance of these components ensure reliable electrical system operation while protecting equipment and personnel.

The investment in quality Bronze transformer ground connectors pays dividends through extended service life, reduced maintenance requirements, and most importantly, enhanced electrical safety. As electrical systems continue to evolve and grow in complexity, the role of reliable grounding components like transformer ground clamps becomes increasingly critical to safe and efficient power distribution.

Whether for new installations or maintenance replacements, choosing the right transformer ground clamps with proper specifications and quality certifications ensures long-term electrical system reliability and safety. The combination of proven Bronze metallurgy, precision manufacturing, and rigorous testing standards makes modern transformer ground clamps an essential component of any professional electrical installation.
